Sideshifting Multi-purpose Clamp - Fujian Huamai Machinery Co., Ltd.

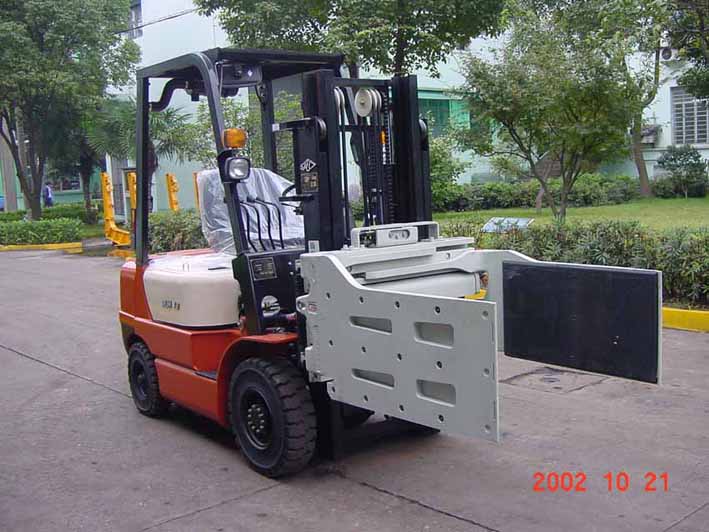

A sideshifting multi-purpose clamp is a type of forklift attachment that is used for handling and transporting a wide range of loads. It is designed to securely clamp onto the load and allow for easy and efficient handling and transportation. This type of clamp is commonly used in construction, manufacturing, and warehousing industries.

The sideshifting multi-purpose clamp works by clamping onto the load with hydraulic arms that can be adjusted to accommodate different sizes and shapes of loads. The hydraulic system is controlled by the operator, who can adjust the clamping pressure to ensure that the load is securely held in place. The clamp can also be shifted to the side, allowing the load to be easily positioned as needed.

One of the main advantages of the sideshifting multi-purpose clamp is its versatility. It can handle a wide range of loads, including pallets, drums, pipes, and more. It can also be easily attached and detached from the forklift, making it convenient for use in different material handling scenarios.

Another advantage of the sideshifting multi-purpose clamp is its ability to handle heavy loads. It allows for safe and efficient handling of heavy loads, reducing the risk of injury and damage to the load and the environment. The sideshifting feature also makes it easier to position the load in tight spaces or areas with limited access.

In conclusion, the sideshifting multi-purpose clamp is a useful forklift attachment for handling and transporting various types of loads. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.

ciri-ciri

· Terbukti rangka bingkai aluminium T-rasuk terbukti
· Bidang operasi yang cemerlang untuk penglihatan.
· Valve hydraulic regenerative untuk kelajuan lengan pilihan
· Galas lengan slaid yang unggul untuk hayat perkhidmatan lanjutan
· Reka bentuk pad getah vulkanik, secara ekonomi.

Catatan

· Dapatkan kapasiti sebenarnya dari forklift dan lampiran dari pengilang forklift.
· Dua set litar minyak tambahan dan injap magnet diperlukan pada forklift.
· Jarak lengan terbuka adalah ruang antara dua hujung lengan.
· Ketebalan lengan "C" adalah saiz ruang yang diperlukan untuk kerja praktikal, berbeza dengan ketebalan plat lengan sebenar
· Sila hubungi jualan dari HUAMAI

Video

Spesifikasi

Taipkan	Kapasiti @ Pusat Lot / mm	Kelas	Julat Pembukaan / mm	Ketinggian lengan A / mm	Panjang Lengan B / mm	Lebar bingkai D / mm	Lengan tebal C / mm	Ketinggian keseluruhan H / mm	Berat / kg	Berkesan tebal / mm
MCS15D- 001A	1400@ 500	II	420-1570	455	955	865	55	665	465	175
MCS15D- 002A	1400@ 500	II	520-1720	415	1220	865	70	665	485	195
MCS15D- 003A	1900@ 500	II	520-1750	600	1015	940	75	665	475	175
MCS15D- 004A	1900@ 500	II	560-1760	455	955	940	55	665	475	175
MCS15D- 005A	1900@ 500	II	520-1720	415	1220	940	70	665	495	195
MCS15D- 006A	1900@ 500	II	560-1800	460	750	940	55	665	356	180
MCS15D- 007A	1900@ 500	II	550-1800	460	905	940	55	665	386	180
MCS15D- 008B	2700@ 500	III	600-1950	455	750	1015	60	730	484	215
MCS15D- 009A	2700@ 500	II	600-1900	455	955	1015	60	730	542	205
MCS15D- 009B	2700@ 500	III	600-1900	455	955	1015	60	730	543	215
MCS15D- 010A	2700@ 500	II	595-1940	455	1160	1015	65	730	603	205
MCS15D- 010B	2700@ 500	III	595-1940	455	1160	1015	65	730	604	215

Aliran Hidraulik & Tekanan

Model	Min. Aliran hidraulik (l / min)	Rec. Aliran hidraulik (l / min)	Maks. Aliran hidraulik (l / min)	Min. Tekanan hidraulik (Bar)	Maks. Tekanan hidraulik (Bar)
MCS20D	15	25	25	35	160
MCS30D	15	40	40	35	160

Pilihan

· Ketinggian lengan pengapit dan lanjutan besar
· Lengan klip kanan dan pergerakan bebas tangan
· 180 darjah putaran mekanisme berhenti

Permohonan

Cekap dan ekonomi mengendalikan hampir semua jenis kadbod kertas, kadbod kayu, kadbod logam dan produk baled. Termasuk tembakau, kertas cetak, serat kimia, bengkel dan pelabuhan. Kecekapan dan ekonomi yang tinggi untuk mengendalikan tanpa platform kerja

Butiran Cepat

Tempat asal: Fujian, China (tanah besar)
Jenama: HUAMAI
Nama Produk: Penjepit pelbagai guna pelbagai
Jenis: MCS15D- 001A
Kelas Pemasangan: II
Julat Pembukaan: 420-1570mm
Ketinggian Lengan A / mm: 455mm
Panjang Lengan B / mm: 955mm
Lebar bingkai D / mm: 47mm
Arm Thick-ness C / mm: 55mm
Ketinggian keseluruhan H / mm: 665mm
Ketebalan Berkesan (mm): 175mm
